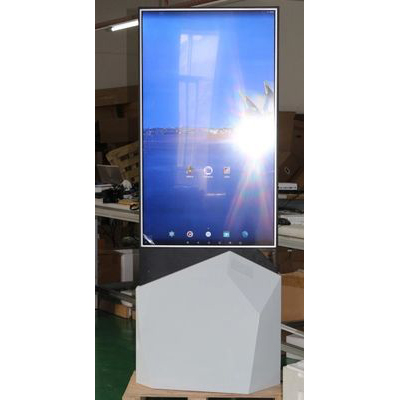

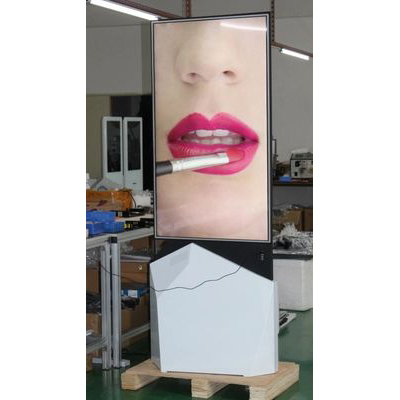

Shenzhen TopAdkiosk Technology Co., Ltd is a professional OLED Advertising Player manufacturer with an excellent design team. Our OLED Advertising Player use industrial-grade 55-inch brand new LG original panels equipped with LED backlight technology to ensure high-quality display effects. In addition to the 55-inch size, we also offer different size options of 43-inch, 49-inch, and 65-inch.
| Item Name: | OLED Bank Digital Signage | Max Resolution: | 1920*1080 |
|---|---|---|---|
| Viewing Angle: | 178/178 | Application: | Indoor |
| Input Voltage: | AC100V-240V (50HZ-60HZ) | Brightness: | 500 Cd/m*2 |
| Thickness: | 2cm | Panel: | OLED |
| Size: | 55 Inch | Mainboard: | RK3288 / RK3399 |
| High Light: | Indoor OLED Digital Signage Kiosk, 55 Inch OLED Digital Signage Kiosk, OLED outdoor advertising lcd screens | ||
1. A well-designed and polished indoor kiosk;
2. OLED Advertising Player is brand-new, industrial-grade 55" LG original panel with LED lighting; 3. Additional sizes available: 43", 49", 55", and 65";
5. OLED Advertising Player provides industrial-grade fan ventilation and guarantee dependable operation;
6. Encourage anti-reflection glass to ensure the greatest possible vision;
7. OLED Advertising Player provide a 500 nit high brightness and make sure it can be read in direct sunlight;
8. Integrated auto-temperature control system with automatic kiosk shutdown capability;


| Model | TPK-55FT | |
| Display | Backlight | LED |
| Display Area (mm) | 1208(H)*680.4(V)mm | |
| Active Size | 55"(43", 49", 55",65" available) | |
| Display Ratio | 16:09 | |
| Resolution (pixel) | 1920*1080 | |
| Display colors | 16.7M (8-bit) | |
| Brightness | 500cd/m2 | |
| Contrast | 1500:01:00 | |
| Response Time | 5ms | |
| Video Format | PAL/NTSC/SECAM | |
| Connectivity | Network | Ethernet,WiFi,3G/4G(optional) |
| Interface | 2*USB, RJ45*1 | |
| Touch | Touch Surface | Anti-Reflection Tempered Mirror Glass |
| Touch Sensor | Capacitive | |
| Touch Points | 10 Points | |
| CPU | Android Pro | Android Quad core CPU, 2G RAM, 8G storage |
| Windows Lite | Intel® Celeron 1037U Dual core CPU 4G RAM,128G SSD | |
| Windows Pro | Intel® Ivy Bridge i3 Dual core CPU 4G RAM,128G SSD | |
| OS | Android | Android 4.2 version above |
| Windows | Windows 7, 8.1, 10 | |
| Software | HD-DS | Support both Android and Windows OS; |
|
|
Digital signage software, support both touch or non-touch program; | |
|
|
Support central manage multiple kiosks etc.. | |
| Power | Consumption | 150W |
| Supply | AC100-240V,50-60Hz | |
| Mechanic | Speaker | 10W*2 Stereo audio |
| Product Dimension(mm) | 1800*728*66 | |
| Package Dimension (mm) | 1885*820*175 | |
| Weight(KG) | 60 | |

| Features | ||
| 1.Application fields:public places ,for example,shopping mall, restaurant,airport, square, commercial buidings,etc. | ||
| 2. Outer shell is made of extra good quality metal material and tempered glass. | ||
| 3.This machine is of android OS design, which could be connected to internet,and supports remote office cotrol . | ||
| 4.Remotely report system utilization and memory usage. | ||
| 5.Control, monitor and design screen layouts remotely by the remote control office. | ||
| 7.Color for metal outer frame is available with Black color, Shinning-silver color, Golden Color, cream-white color; Color Is Optional. | ||
| 8.APPs are available on Google Play and APP Store | ||
| 9.Easy connection to wifi. |
