8 inch face recognition terminal device wall mounted
Featuring a high-level Germany HEIMANN temperature sensor, our kiosk enables accurate body temperature measurement, providing an added layer of safety and peace of mind for passengers and staff alike.
Whether you need a stand-alone version, narrow network version, or cloud server version, we have you covered. Plus, with our free smart Pass Management Software, APK, and API provided, along with 24-hour online support, you can trust that you're getting a comprehensive solution that meets your needs.
Customization is key, which is why our Outdoor Bus Station Kiosk is available in multiple sizes and designs, with options for touch and non-touch screens, as well as customized colors to match your branding and aesthetic preferences.

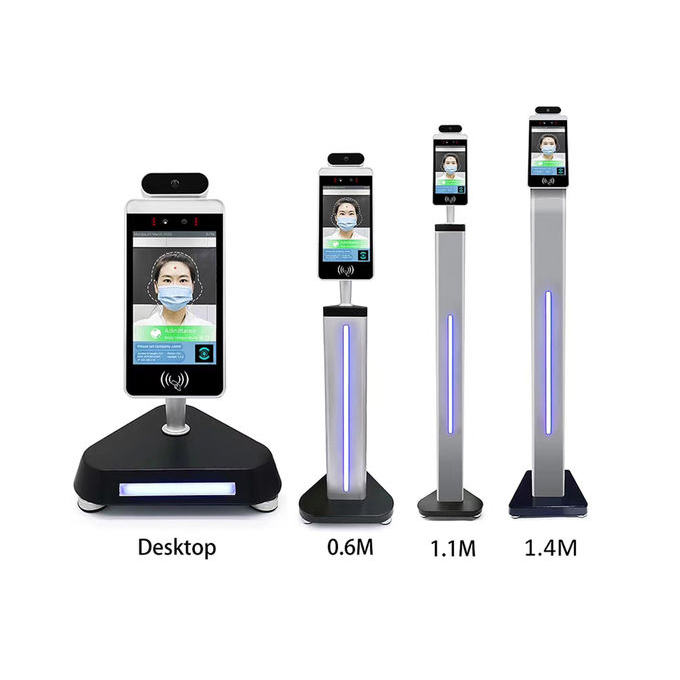

Installation is hassle-free, with options for wall-mounted, desktop stands, free-standing stands, or installation on access control gates. Plus, our kiosk is designed to withstand outdoor conditions, performing perfectly under the sun and in low-temperature environments.
Certified to meet international standards including CE, FCC, RoHS, CB, KC, and CCC, our kiosk offers peace of mind in terms of quality and compliance. With a strong and stable Android motherboard and OS, multi-language support, and fast delivery times, you can trust that you're getting a reliable and efficient solution for your outdoor bus station needs.
Transform your outdoor bus stations with Shenzhen TopAdkiosk Technology Co., Ltd's Outdoor Bus Station Kiosk. Contact us today for a price list and discover how our advanced solutions can elevate passenger experience and improve operational efficiency.
Detailed Product Description
Certification:
|
CE/CCC/FCC/ROHS/ISO9001
|
Material:
|
Screen+camera+sensor+tempered Glass+metal
|
Screen Size:
|
8" 7" 5" 10.1" 13.3" 15.6"
|
Software:
|
MIPS Management Software
|
Warranty:
|
One Year
|
Logo:
|
Can Be Customized
|
Sensor:
|
Germany HEIMANN Sensor
|
High Light:
|
infrared thermal camera, face recognition temperature measurement
|
MIPS Management Software: Support Standalone Version, LAN version for Linux & Windows OS server, WAN LAN version for Linux & Windows OS server
Support clients install software in their public IP server to get a cloud server.
This will be convenient for client to install management software for their final user on LINUX or WINDOWS server with public IP address and help their final client can install the terminal in different place for city but control from one place.
PC/cloud management platform
11 management platform languages, including Chinese, British, Japanese and Korean (still increasing in the later period);
Nearly 40 kinds of host voice languages are all spoken by real people
Cloud platform realizes unified and centralized management of devices in different regions of the world
IC / ID / QR code function is optional
OEM/ODM
Low temperature function (- normal temperature measurement at 20-60 ºC)
CNC process for frame, elegant design
Free MIPS software
18 languages RFID Card Reader floor stand Kiosk Automatic Thermal Temp Measurement gate Access
human face recognition Dynamic Face Recognition Thermometer human temperature detecting for gate access control system
Management Software: Support Standalone Version, LAN version for Linux & Windows OS server, WAN LAN version for Linux & Windows OS server
Support clients install software in their public IP server to get a cloud server.
This will be convenient for client to install management software for their final user on LINUX or WINDOWS server with public IP address and help their final client can install the terminal in different place for city but control from one place.
Download link: https://1drv.ms/u/s!Ah4aqbNQPC8th2kPEQg-_7MMJjOC?e=dD7hzS
Product Features:
1, Face Recognition camera build in for access control system,
2, High Level HEIMANN temperature sensor for body temperature measurement,
3, With IC/ID card reader for access control system,
4, Stand alone version, narrow network version, cloud server version available,
5, Free smart Pass Management Software, APK and API provided, 24hours online support available,
6, Multi size and design available, touch/non touch screen available, customized color available,

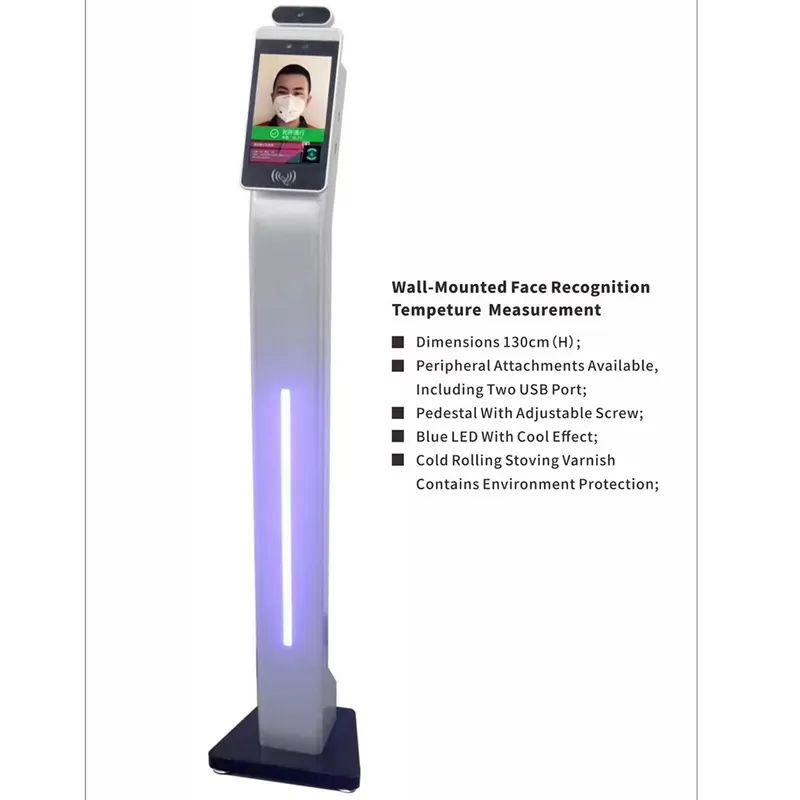

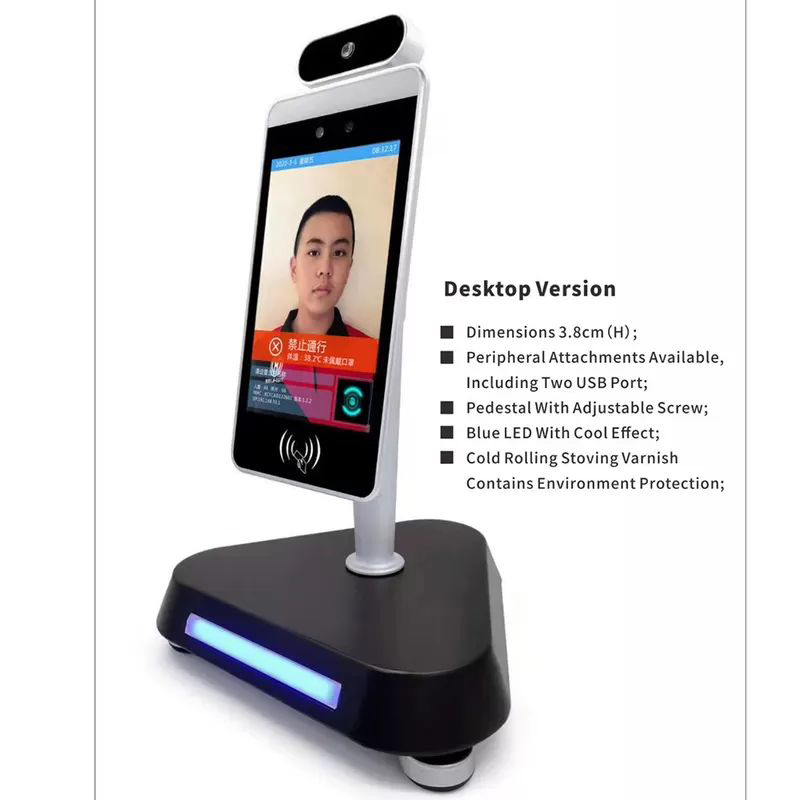

7, Installation way: Wall mounted, desktop stands, free standing stands, install on access control gate,
8, Installation location: School, hospital, airport, railway station, village, mall, store, office, company, commercial building, etc,
9, Works perfectly outdoor under sun, works perfectly under Low temperature environment,
10, Certificated: CE, FCC, RoHS, CB, KC, CCC etc,
11, Strong and stable Android mother board, Android OS. With multi languages for various market,
12, Fast delivery time. Ready to ship out within 2 or 3days for order under 500pcs,
13, Multi connectors for connecting different device,
14, Play advertisement when no body come close.
Camera:HD Camera Resolution 32 * 32 Pixel
advertising function:Play advertisement when no body come close
ACCESS FUNCTION:Yes
Temperature Sensor:GERMANY HEIMANN SENSOR
Card reader:IC/ID card reader with SDK
Version:Standalone, narrow network, cloud server
Software:Free management software with APK, API
Service:24hours on line service
Customized Design:customized terminal and packing available
Certificates: CE/CCC/FCC/ROHS/ISO9001/CB/KC/IECEE
Work under sun:Perfectly
Work under cold environment: Perfectly
Product Introduction:
Adopting the high-performance hardware platform of RSM micro rk3288 / rk3399 / Qualcomm msm8953, equipped with industrial grade binocular camera and human face recognition technology, as well as infrared thermal imaging module, it supports mask recognition. It also supports the extension of ID card reader, fingerprint instrument and other peripheral devices, which can be applied to gate channel and access control attendance, and realize the safe and efficient access control of personnel.
Application scenario:
It can be matched with access gate and access control for communities, office buildings, schools, hotels
Scenic spots, transportation hub centers and other public service places, etc.
Technical Parameter:
Product model:TPK-FRTD-001
Resolution: 200W pixels
Camera type: binocular wide dynamic camera
Focus distance: 50-150cm
White Balance Auto
Screen size: 8.0 "IPS LCD
Resolution: 800x1280
Processor CPU rk3288 quad core / rk3399 six core / msm8953 eight core
Local storage EMMC 8g
Accessories: fill light, led and infrared double fill light
Network module supports Ethernet and wireless (W old)
Interface audio supports 2.5w/4r horn
USB interface: 1 USB OTG, 1 USB host standard a
Serial communication interface: one RS232 serial port
-relay output 1 channel door opening signal output
Wigan interface: one channel of Wigan 26 / 34 output, one channel of Wigan 26 / 34 input
Upgrade button supports the uboot upgrade button
Wired network interface 1-way RJ45 Ethernet base
Face detection supports detection and tracking of multiple people at the same time
Face database supports up to 30000
1: N face recognition support
1: 1 face matching support
Stranger detection support
Function identification distance configuration support
UI interface configuration support
Device remote upgrade support
Equipment interface includes equipment management, personnel / photo management, record query, etc
Deployment mode: support public cloud deployment, privatization deployment, LAN use, stand-alone use
Human body temperature detection support
Temperature detection distance [M
Temperature measurement accuracy < ± 0.2 ° C
Temperature measurement range: 10 ° C ~ 42 ° C
Thermal imaging field of view 32 x 32 ° C
Visit object SIE Continuous constant temperature direct release support
Temperature over temperature alarm support (temperature alarm value can be set)
Protection grade: IP65, with certain outdoor dust-proof and waterproof functions
Power supply DC12V (± 10%)
Operating temperature - 10 ° C ~ 60 ° C
Storage temperature - 20 ° C ~ 60 ° C
General parameter power consumption: 13.5w (max)
Installation mode: gate support installation
Equipment size: 238.24 * 128 * 25 (mm)
Weight: 1.45kg
Fixed mode:It is mainly used for brake, which is screwed and fixed by screw base.
